Cooling

Parts are being added to our catalogue regularly, and soon these will be available to purchase online.

Please contact us should you wish to purchase any parts prior to this.

Sort By
  • 11G176 Thermostat blanking sleeve
    Removal of the thermostat helps to reduce engine temperature, however a thermostat blanking sleeve should be fitted to maintain correct coolant circulation to the entire head. Failure to do so will cause overheating around #3 and #4 combustion chambers, with obviously disastrous results. When the blanking sleeve is used it is also necessary to blank off the by-pass hose (not found on late heads) between the head and water pump.
  • 11G227 Radiator bracket & cowl grommet
    Rubber grommet used on all top radiator to cylinder head brackets as well as the bottom bracket on earlier two piece radiator cowlings. Sold singly.
  • 11G228 Radiator mount bolt for two piece shroud
    Special shouldered bolt for attaching the radiator housing to the upper and lower mounting brackets on earlier two piece radiator shrouds. Use with 11G227 rubber grommet. Sold singly
  • 12A2075 Bypass hose tube for cylinder head
    Longer type cylinder head adaptor tube on underside of cylinder head. Frequently rusted on old heads and requiring replacement when head is overhauled
  • 12A2153 Lower radiator bracket for one piece cowl
    Lower radiator bracket for one piece cowl. Uses horizontal bolt 12G4270 to attach to engine mount. This is the round nose mini bracket, Clubman version is at a different angle
  • 12A312 4mm thick fan spacer
    Fan spacer, used on most side-radiator Minis, except Clubman models. 4mm thick steel. Can be grouped up to give varing distances of fan to radiator. Sold singly
  • 12G103 Thermostat housing
    Thermostat housing so suit most minis. Uses GTG101 gasket
  • Featured
    12G2129 11 blade plastic fan blade
    11 blade plastic fan, one of the most efficient fans ever fitted to a Mini. This fan pushes a lot of air with very little noise. Old fans with curled blades will have seriously compromised cooling campared to a new fan. It's also crucial to ensure the fan is fitted the correct way around. Our picture shows the side of the fan that must face the engine
  • 12G2453 Radiator top bracket - 1275GT Clubman
    Top radiator bracket for 1275GT Mini Clubman
  • 12G4270 Lower radiator mount to cowl bolt for one piece cowling
    Bolt to attach one piece radiator cowling to 12A2153 bracket
  • 12G617 Radiator top bracket - 1275 round nose mini
    Top radiator bracket for 1275cc engines. This is the correct length bracket when fitting a 1275cc engine into a round nose mini. Mini Clubman requires a wider bracket 12G2453
  • 12G617S Radiator top bracket in Stainless Steel - 1275 round nose mini
    Top radiator bracket for 1275cc engines. This is the correct length bracket when fitting a 1275cc engine into a bull nose mini. Made from polished stainless steel for added bling
  • 14A7286 Radiator surround rubber
    One piece radiator surround rubber for MK1/2 and early MK3 pre 1975 minis. This rubber attached to the inner wing shroud when fitted to help contain air flow from the radiator. Not suitable for SPI minis
  • 34G3651 Heater hose grommet
    Rubber bulkhead grommet for 1 1/2" GRH1006 heater hose to pass through. Sold singly
  • 88G215 Water pump gasket
    Water pump gasket
  • ARA951 Overlow hose clip
    Small clip to attach the radiator overflow hose to radiator cowling
  • ARP2000 3 core radiator
    Standard spec copper core radiator, suitable for all standard engines from 850cc - 1275cc

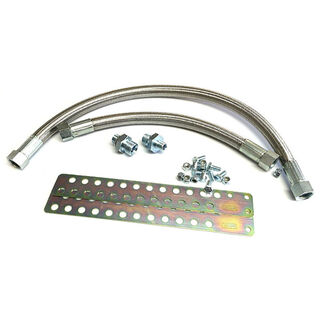

  • C-AHT3 Braided oil cooler hose kit - clubman
    Braided oil cooler hose kit for Clubman or race Minis where the cooler has been relocated. Stainless braided to prevent swelling under extreme conditions. Hoses are 14" and 24"
  • C-AHT4 Braided oil cooler hose kit - round nose mini
    Braided oil cooler hose kit for round nose mini. Stainless braided to prevent swelling under extreme conditions. Hoses are 14" and 12"

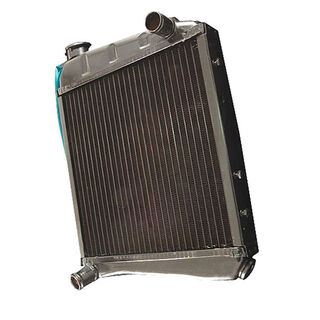

  • C-ARA4442 Super cool 2 core radiator
    UK manufactured performance radiator with original shape header tank and drain plug in lower tank which doubles up to also accept C-ARA4445 screw in type sensor for use on injection cars. This radiator has 20 fins/gills per inch with 2 tubes in the core and has better cooling V shape fins

    Especially for more powerful and hotter running engines. Developed using the latest technology and design for increasing air flow, utilizing just two rows of very large tubes and V shaped gills.
  • C-ARA4445 SPI fan switch for use with 2 core rad
    Screw in fan control switch required when fitting C-ARA4442 super 2-core radiator to SPI mini

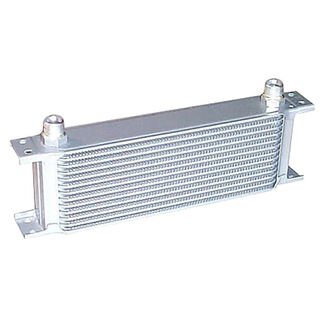

  • C-ARH221 13 row oil cooler
    13 row oil cooler with 1/2" BSP fittings. Not a vital component these days due to advances in oil technology but useful on race cars and engines that exceed 90BHP
  • C-GZA2083BLACK Silicone bypass hose
    Silicone bypass hose that can be removed and reused many times. These seem to last forever! After a series of failures caused by poor quality rubber hoses, particularly the concertina type pipes which seem to perish after only a few months, we switched to these silicone hoses. The water pump will need to be removed to fit this hose to a built up engine but the advantage is you will never need to worry about changing it again. Supplied with a pair of hose clamps to suit
  • CAM4618 Lower radiator mounting bush for one piece cowl
    Lower radiator rubber bushing for one piece radiator cowling. This is the bush you need if your radiator housing has a single horizontal lower bolt connecting the cowling to the radiator support bracket. Sold singly
  • CAM4619 Radiator top bracket - 850, 998, 1100
    Radiator top bracket to fit 850, 998 & 1100 engines in roundnose mini. Wider bracket required for Clubman cars

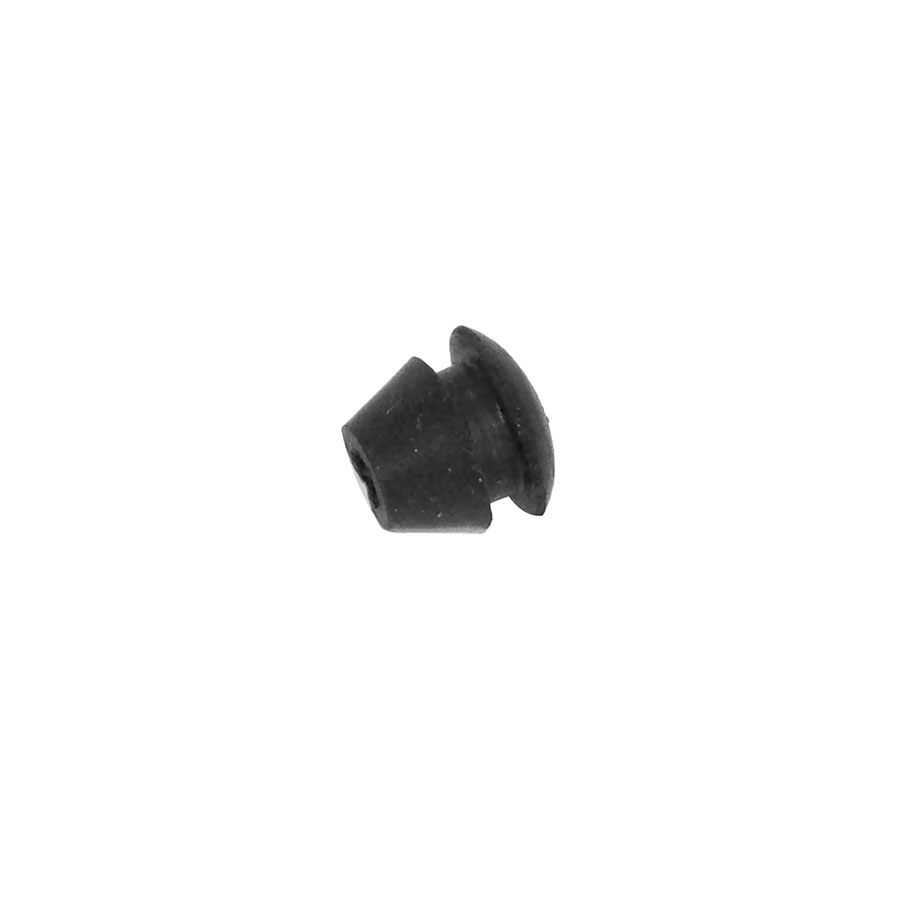

  • CAM5969 Bulkhead grommet for heater & choke cables
    Rubber grommet for choke and heater cables. Pushes into bulkhead holes allowing cables to pass through & prevent chafing and ingress of water and fumes. Sold singly
  • CDU2334 SPI fan switch seal
    This is the rubber seal to retain and seal GVS104 transmittor in the bottom tank of the radiator on injection cars
  • CHS2515 Thermostat stud
    Thermostat stud for all minis prior to injection cars. It's not uncommon for the thermostat housing to be corroded solid onto these requiring it to be smashed off for replacement. These studs can also be used on the inlet manifold for HS4 and HIF carbs. Uses 5-16UNFNUT nut. Sold singly
  • GPS133 Oil pressure warning switch
    Oil pressure warning switch. Fits all A series engines from 1959-1996. Activates warning lamp when pressure drops between 7-10lb
  • GRC101 Radiator cap - long neck type
    Long neck radiator cap, as fitted to early 850s which have a deeper filler neck on the radiator

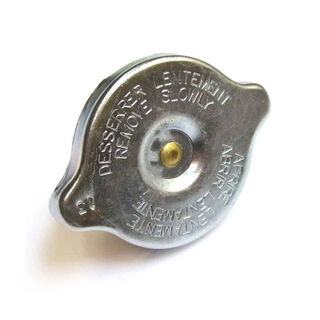

  • GRC1111 Radiator cap - non recovery system
    Radiator cap for non recovery system. If own a pre injection mini then this is the most common cap to use. Only exception is early 850's which may require a deep neck cap GRC101 if the radiator is still the original factory unit. Most places will hook you up with the later recovery style cap which is incorrect and will allow coolant to escape when fitted to a sealed system
  • GRC1184 Expansion tank cap for 1996 onwards cars
    Screw on cap for twin point injection cars from 1996 on. This cap fit to the expansion tank on this model and originated from the the Mini Metro. This special cap is made to allow water /pressure to escape and should be checked periodically.

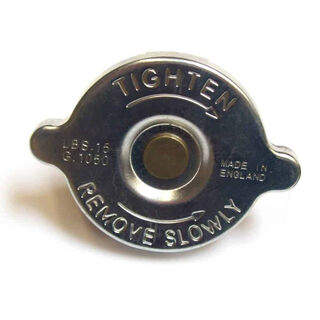

  • GRC207 Radiator cap -  recovery system type
    Radiator cap for recovery system. If your mini's radiator has an overflow pipe AND overflow bottle then this is the cap to use, as per SPI minis etc. Externally looks the same as a sealed system cap but has an additional seal
  • GRD172 Radiator for SPI minis
    Factory spec copper core radiator to suit SPI minis with clip in fan sensor hole at the bottom. Fitted from 1991 up until the introduction of the twin point front mounted type.
  • GRH1001M Radiator overflow hose
    Green plastic overflow hose that fits on the radiator neck tube and directs any excess coolant away from the wiper motor and engine bay. Sold in pre-cut length to suit
  • GRH1242 Bottom radiator hose SPI mini
    Lower radiator hose for single point injection cars
  • GRH240KEVLAR Bottom radiator hose with heater outlet
    Lower radiator hose with Kevlar reinforcing fibers. Has a bonded in heater take off hose for connection to heater pipe. Excellent fitting, strong, reliable hose
  • GRH245 Radiator top hose 850cc, 1000cc & 1100cc
    Good fitting, long lasting top radiator hose for 850cc, 100cc & 1100cc minis. May require minor trimming for your application
  • GRH247KEVLAR Radiator top hose 1275
    Top radiator hose for 1275 before 1990's Cooper but can be trimmed to suit SPI etc. Kevlar reinforced for extra strength and heat-resistance
  • GRH467 longer top hose for MK1 and 1000-1100cc Clubman
    This hose is the correct length for Mini Clubman 1000/1100cc motors. Also used on early MK1 cars if still running original radiator as hose outlet is in a different position than later radiators
  • GRH802 Bottom radiator hose without heater outlet
    Lower radiator hose with Kevlar reinforcing fibers. Fits Minis that do not require a heater pipe connection. Excellent fitting, strong, reliable hose
  • GTG101 Thermostat gasket
    Heavy paper gasket, goes between the thermostat housing and the cylinder head
  • GTR101
    Thermal transmitter fitted in the cylinder head from 1970 to 1990
  • GTR104 Temp transmitter - Cooper S & Deluxe 1964-1969
    Most minis with dual gauges up to 1969 including Cooper S Mk2 with oil and temp gauges fitted used this sender when fitted with a voltage stabiliser.

    Minis before Sept 1964 except some super deluxe and pre Sept 1964 Cooper without voltage stabiliser used GTR102.

    After 1969 use GTR101.

    Another guide is that the gauge for this had a pointed bezel but if you have the later rounded bezel type from 1970 on try GTR101 if readings seem wrong.

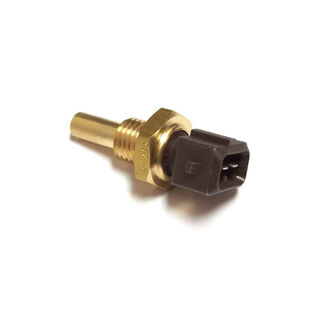

  • GTR206 Temp Sender 1996 on
    Thermal transmitter fitted in fitted in sandwich plate below thermostat on twin point cars
  • GTR307 Coolant temp sensor SPI
    Coolant temperature transmitter fitted to SPi cars from 1992 until 1996. Mounted to the underside of the inlet manifold

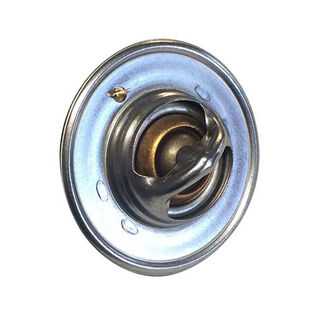

  • GTS104 Thermostat 82 degrees
    82 degrees thermostat which we have found to work the best in most cases
  • GVS104 SPI radiator fan switch
    Fan control switch with seal for SPi Mini radiators. This is the push in type that fits original factory radiator. Controls the addition fan inside the passenger side front guard. See CDU2334 for seal to suit
  • GWP134EVO Water pump with cast impellor, pre A+
    High quality higher capacity pump fitted with a PPS, glass filled plastic impeller as used by Aston Martin and Jaguar which reduces weight on the bearing loading and has a triple lip seal giving a better controlled flow rate through the rev range. This pump is about 130g lighter than standard type and has the rolled edge gasket facing evolved by Rover for better sealing. Tested with coolant pumping at 10,000 rpm with no detriment to the PPS impeller, this larger impeller pump moved more coolant than the original early GWP132 standard pump and is the only brand pump we now sell

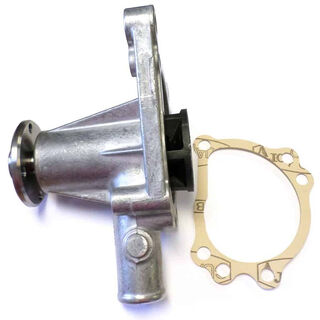

  • GWP187EVO Water pump with cast impellor for A+ engines with no bypass outlet
    High quality higher capacity pump fitted with a PPS, glass filled plastic impeller as used by Aston Martin and Jaguar which reduces weight on the bearing loading and has a triple lip seal giving a better controlled flow rate through the rev range. This pump is about 130g lighter than standard type and has the rolled edge gasket facing evolved by Rover for better sealing. Tested with coolant pumping at 10,000 rpm with no detriment to the PPS impeller, this larger impeller pump moved more coolant than the original early GWP132 standard pump and is the only brand pump we now sell

Show More
